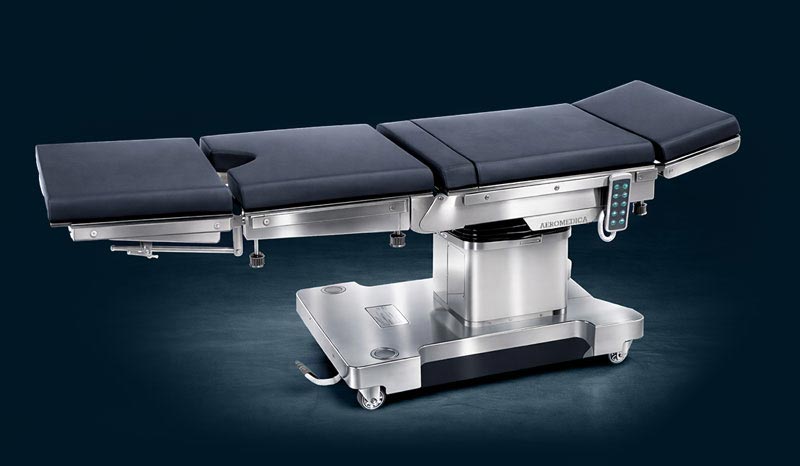

Healex-04 Surgical Operating Table

Healex 04

Four Function Surgical Table

HEALEX 04 is a four-function surgical table with a manual lever wheel-lock system, offering single-click zero positioning, 200 kg load capacity, smooth silent operation, and optional ultra-low height and sliding tabletop for enhanced stability, flexibility, and clinical efficiency.

Standard Features

Features

Single Click Zero Position

Feature allows the table to return to its original position

Features

Load Capacity 200 kg

with balanced center of gravity for enhanced stability

Manual Wheel-locking System

With a Single Lever

Optional Features

Ultra Low Height

Ultra Low Height

Optional

Sliding Table Top

Optional

Advanced Manual Override

Advanced Manual Override

Optional

Surgical OT Tables Manufacturer
Aero Medica

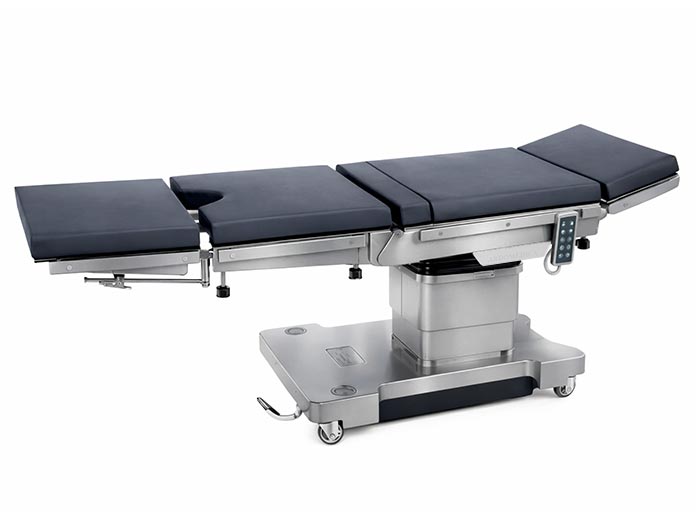

HEALEX 04

Four Function Surgical Table with Manual Lever Wheel-Lock System

  • Electric four-function control with quick-access hand remote.
  • Zero function for rapid reset after procedures.
  • Compact stainless-steel base with integrated actuator column for long life and easy cleaning.
  • Smooth and silent actuator motion (< 50 dB) for operation-theatre environments.
  • Manual lever wheel-lock system ensuring stable positioning during surgery.
  • Five-section radiolucent top for C-Arm and imaging compatibility.
  • Anti-static, high-density PU mattress with seamless edges for infection prevention.

Aero Medica

Features

Precision-Driven Features for Modern Operating Rooms.

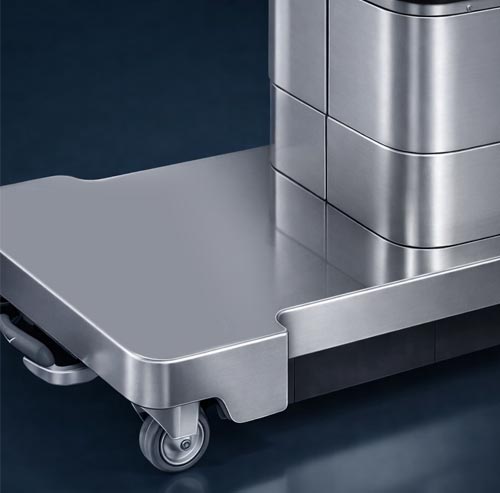

Built to last

High-quality medical-grade 304 stainless steel

Crafted from high-quality medical-grade 304 stainless steel for durability, hygiene, and corrosion resistance.

Healex 04

Heavy-Duty Capacity

Load Capacity
200 kg

Optimized weight distribution with a balanced center of gravity for exceptional stability and control.

Weight Capacity

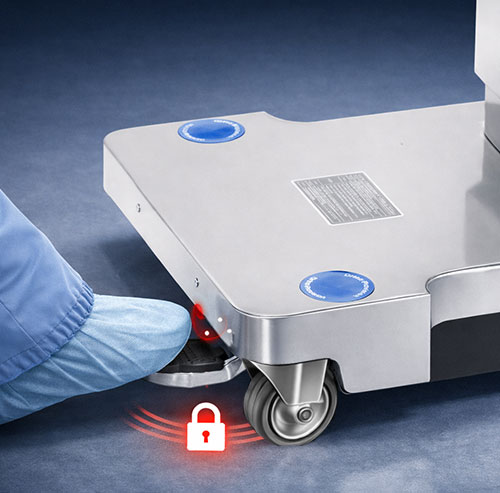

Manual Wheel-locking

Wheel-locking with a Single Lever

Mechanism locks wheels simultaneously, ensuring maximum stability during surgical procedures and smooth mobility when repositioning is required.

Manual Wheel Locking

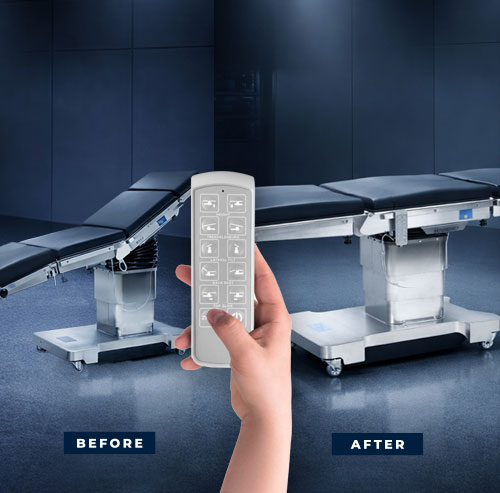

Position Reset

Zero Position with Single Click

Zero Position feature allows the table to return to its original position with a single click.

Single Click Zero Position

Aero Medica

Multi-Position Precision

Smart Positioning for enhanced Surgical Performance

Trendelenburg

Trendelenburg

25°

Reverse Trendelenburg

Trendelenburg Down

20°

Reflex

Reflex

210°

Flex

Flex

70°

Lateral Tilt

Lateral Tilt

Left 20°

Lateral Tilt

Lateral Tilt

Right 25°

Minimum Height

Min. Height

W/O Mattress: 700 mm

Maximum Height

Max Height

W/O Mattress: 950 mm

Head Section Up

Head Section

Up 45° / Down 90°

Leg Section

Leg Section

Up 90° / Down 45°

Kidney bridge

Kidney bridge

150 mm

Back Section

Back Section

Up 75° / Down 25°

Aero Medica

Healex 04

Technical Data

Aero Medica
Features Healex 04
Table Length 1985 mm
Table Width 540 mm
Min Height w/o Mattress 700 mm
Max Height w/o Mattress 950 mm
Kidney Bridge 150 mm
Trendelenburg Up 25°
Trendelenburg Down 20°
Lateral Tilt Right 25°
Lateral Tilt Left 20°
Back Section Up 75°
Back Section Down 25°
Leg Section Up 20°
Leg Section Down 90°
Head Section Up 45°
Head Section Down 90°
Wheel Locking Manually by Lever
Top Sliding -
Mattress Type PU Anti-static (50 mm)
Noise Level < 50 dB
Base Material Stainless Steel
Control Type Hand Remote
Battery Backup Optional (2–3 hrs)
